Quick Summary (TL;DR)
HDMI is fine for short cable runs and consumer gear, but for professional church production you need SDI. SDI supports much longer distances, uses locking connectors, and matches the broadcast standards used by mixers like the Blackmagic ATEM. Converting EasyWorship’s HDMI outputs to SDI ensures reliable, professional-quality overlays for worship services and live streaming.
Introduction and Overview
This is the second article in our 4-part series on using EasyWorship to deliver professional Alpha Key overlays in church production and worship streaming. In this article, we’ll cover why HDMI needs to be converted to SDI, what advantages SDI offers, and which converters are best for church environments. In Part 3, we’ll explore HDMI-to-SDI conversion issues with Alpha Key transparency.
Understanding Signal Limitations
HDMI Distance Constraints
- HDMI is designed for consumer devices like TVs and projectors.
- It’s reliable up to about 25 feet, with an absolute maximum around 49 feet before signal degradation.
- Performance depends heavily on cable quality.
- In large sanctuaries, IMAG (image magnification), and live stream setups, HDMI is simply too fragile for long runs.
SDI Advantages for Long Runs
- SDI (Serial Digital Interface) is the broadcast standard.
- Supports distances up to 300 feet over coax without repeaters.
- Uses locking BNC connectors so cables don’t accidentally pull out.
- Carries 10-bit YCbCr 4:2:2 broadcast-legal video, ensuring compatibility with professional mixers like the Blackmagic ATEM.

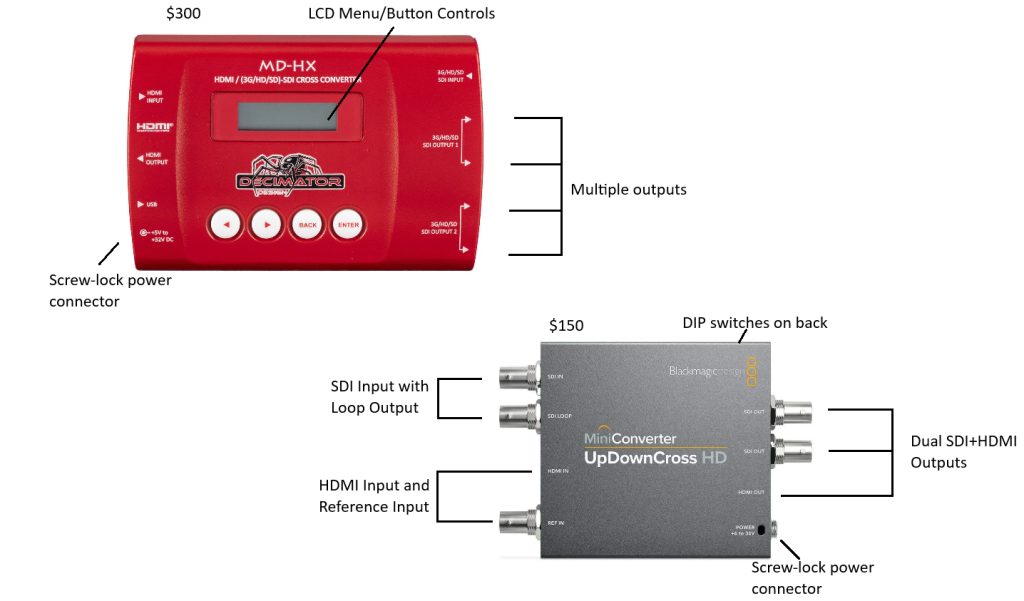

Featured Converter Solutions
To connect EasyWorship’s HDMI outputs to SDI mixers, you’ll need converters. Two of the most common in church production are Decimator MD-HX and Blackmagic Up/Down Cross Converter.
Decimator MD-HX Converter
A professional-grade solution priced around $300.
Key Features: – HDMI ↔ SDI conversion (bidirectional)
– Built-in scaling and frame rate conversion
– Dual HDMI/SDI inputs and multiple outputs
– LCD menu with button controls
– Screw-lock power connector
Blackmagic Up/Down Cross Converter
A more budget-friendly option at around $150.
Key Features: – SDI input with loop output
– HDMI input and reference input
– Dual SDI + HDMI outputs
– DIP switch configuration system
– Screw-lock power connector
Professional Application Scenarios
- Video Mixer Integration: SDI makes it easy to connect EasyWorship outputs to mixers like the Blackmagic ATEM TV Studio.
- Scaling and Format Conversion: Both Decimator and Blackmagic converters auto-scale resolutions, so your EasyWorship output matches mixer requirements.

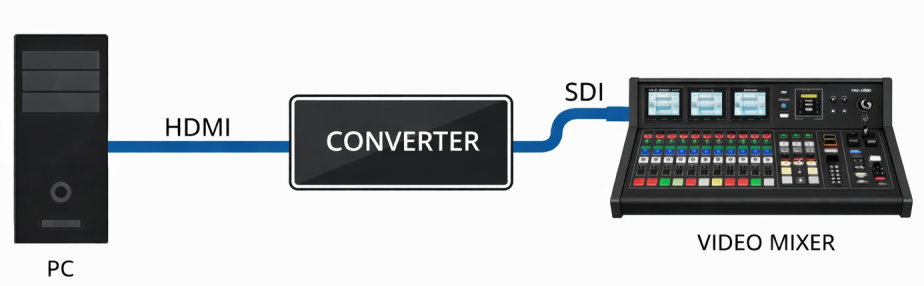

- Extended Runs: Convert HDMI to SDI at the source, run SDI cable across the sanctuary, and convert back to HDMI if needed at the destination.
Cost & Converter Comparison
| Converter | Cost | Ease of Setup | Key Advantage |
|---|---|---|---|
| Decimator MD-HX | ~$300 | Easy LCD menu interface | Built-in scaler + flexible options |
| Blackmagic Up/Down Cross | ~$150 | DIP switches, less intuitive | Lower cost, reliable performance |
Quick Fix Checklist
☑ Use SDI for long runs and reliable church production workflows
☑ Choose converters based on budget vs ease of use
☑ For plug-and-play, Decimator is easiest; for lower cost, Blackmagic works well
☑ Always secure cables with locking BNC connectors
☑ See Part 3 for fixing transparency issues caused by HDMI-to-SDI conversion
Key Takeaways
- HDMI is fine for short consumer connections but not for professional production.
- SDI is the standard for distance, reliability, and broadcast compatibility.
- Converters like Decimator and Blackmagic bridge the gap between EasyWorship PCs and SDI-based video mixers.
- Converting HDMI to SDI is the first step to achieving professional-quality overlays in worship production.
Wrap Up
For houses of worship using EasyWorship with professional video mixers, converting HDMI outputs to SDI is essential. SDI eliminates distance issues, adds reliability, and ensures compatibility with mixers like the Blackmagic ATEM.
This sets the foundation for the next steps: fixing transparency issues with Alpha Key (Part 3) and keeping key/fill signals in perfect sync (Part 4).
Final Note: EasyWorship makes it easy for churches to deliver professional presentation outputs. With HDMI converted to SDI, your content is ready for integration into broadcast-standard workflows, giving your worship team confidence and clarity.
